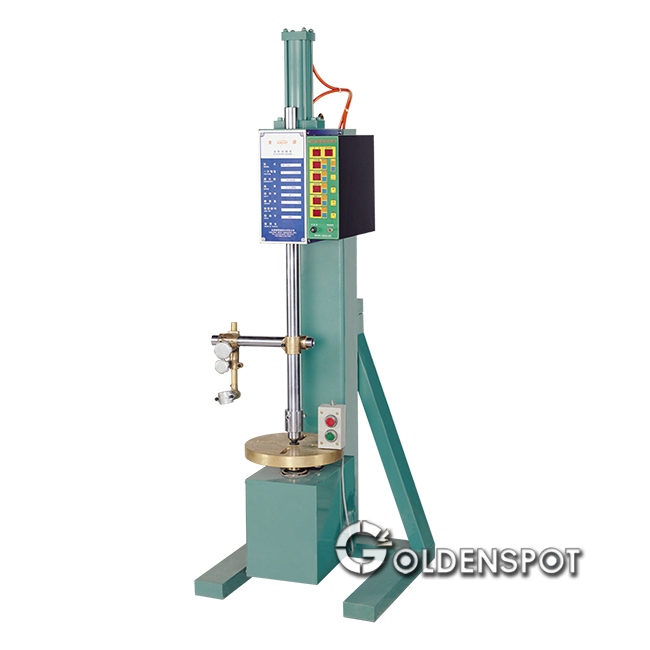

Vertical Table Rotary Stand(MIG/TIG) Model：SR-150
Features
1.Stable rotating speed & multi-function with micro-computer weld controller.
2.Rotation Speed Adjustable. Operation modes: Cycle, manual, timing.
3.Better performance operate with MIG or TIG welding torch.
4.Fast & handy operate to regular operator.
5.Adjustable gun position with Table Rotating.
Applications
Metal working piece which require circular welding. i.e. Air/water tanks
Inquiry
| Model | Voltage | Rated Frequency | Speed | Permissible Duty | Depth Of Throat | Working Length | Applicable Thickness | Slide Base |
|---|---|---|---|---|---|---|---|---|
| NO. | V | HZ | RPM | % | mm | mm | mm | - |
| SR-150 | 220 | 50/60 | 3~15 | 80 | 250 | 30~400 | 0.3~6 | x |
| SR-150T | 220 | 50/60 | 3~15 | 80 | 250 | 30~400 | 0.3~6 | v |
