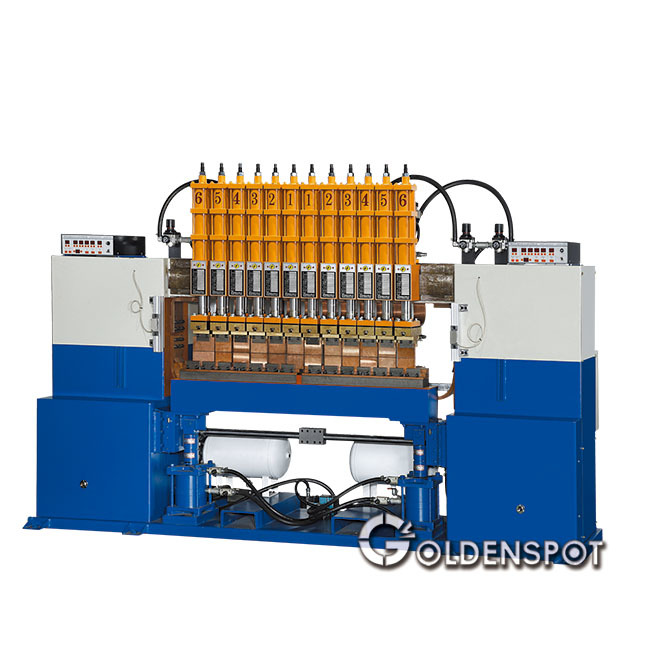

Multi-Point Spot Welding Machine Model：SA-1500DD
1.With Micro-computer weld controller. Capable of performing welding time & current separately for each welding point.
2.Elevate base electrode performs an easy operation.
3.Multi cylinder gate design. Weld multi points each line.
4.Capable of welding cross wires beneath & above.
5.Welding position is easy to be adjusted.
6.Water circulation cooling system extends long term processing.
7.Optional twin start switch for performing single work cycle to applications with different wire diameter.
8.Easy assembly with other auto production equipment.
Application
Storage Cage/Container, Display Rack, Computer Case, Furniture, Basket, Trolley, various wire mesh products.
Inquiry
| Model | Rated Capacity | Max. Pressure | Cylinder | Weld Width |
Machine Size | Machine Weight |
|---|---|---|---|---|---|---|
| NO. | KVA | KG | PCS | mm | W X H X D mm | KG |
| SA-800DD | 80 | 500 | 10 | 1,200 | 2,800 X 1,700 X 700 | 2,200 |
| SA-1000DD | 100 | 500 | 10 | 1,200 | 2,800 X 1,700 X 700 | 2,300 |
| SA-1200DD | 120 | 500 | 12 | 1,600 | 3,100 X 1,700 X 700 | 2,800 |
| SA-1500DD | 150 | 500 | 12 | 1,600 | 3,100 X 1,700 X 700 | 2,900 |
| SA-2000DD | 200 | 500 | 12 | 1,600 | 3,800 X 1,700 X 700 | 3,300 |
