Wire Straightening Device
2 sets of the device for straightening the wires.

Wire Feeding Device
2 sets of wire feeding device; one is driven by the converter motor for sending the wires to the wire accumulator, another is driven by the servo motor for sending the wires to the welding part. Both of them can help welding pitch precisely.

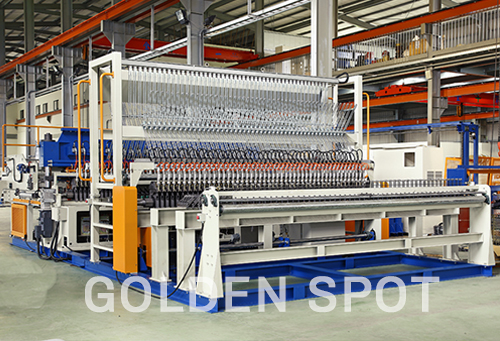

Mesh Welding Machine
According to the wire welding pitch, the machine can adjust upper cylinders, electrodes. Adjustable of each welding point and current, which are controlled by thyristor and micro-computer timer for the most proper electrode stroke and perfect use of electrode dies. Prevent Deformation Device.

Cross Wire Carriage
Automatic cross wire loading carriage with single wire hopper for sorting, positioning and ejecting straightened and cut to length cross wires. Operator sends the pre-cut wires into the carriage by crane.

Controlling System
Adopt P.L.C with colored interface windows. All parameters of the system are set on the screen. Fault diagnostic system with picture indication for fast removing of machine’s stops. Linking with P.L.C, the working process and fault messages will be graphical presented.

Fault Examination
Wires supply, non-wires, fault of line wires discharging, fault of cross wires ejecting, line wire forwarding, short of welding power, overloaded of servo motor, fault positioning, fault of air compressor, over-high temperature.

Peripheral Device
Spit Trimmer:Applicable for wire 3-4m/m
Guillotine Shear:Applicable for wire 3-4m/m

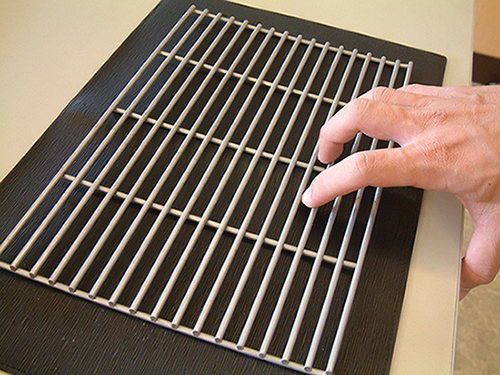

Applications
Welded wire mesh fencing, fencing net, barrier fence, metal fence, galvanized weld mesh, fine mesh, fence netting, welded nets, temporary fencing, security fencing mesh, display rack, cages, etc...
