Wire Mesh Welding Machine Model：GSA-200
- Feeding line wire to the spot welding position by manual.
- Press the workpiece by cylinder then fed by motor running.
- Reached to the spot welding system.
- Cross wire was fed by carriage with sole hopper.
- Feeding to the position then in the process of welding.
- Workpiece was holded by holding system.
- Wire mesh completed.
Inquiry
Welding Items

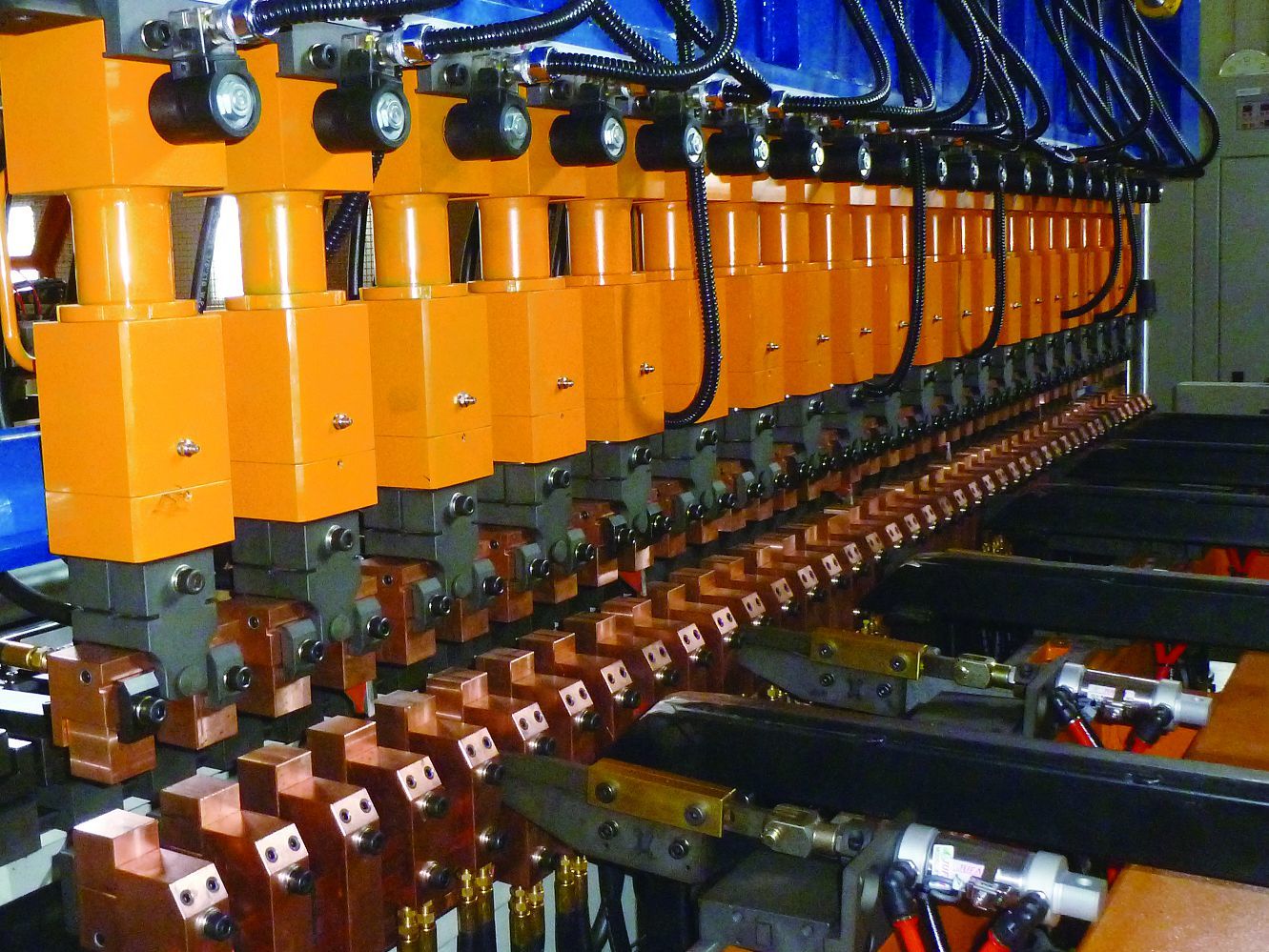

Spot Welding System
Adjusting the up compressed cylinder, electrodes, and fixture based on the wire pitch. Possible individually set welding time and current.
Cross Wire Feeding System
It is auto sole cross wire loading carriage. Carrying a bundle of wires into the carriage by traveler. Integrated with the welding system, it is with the function of auto wire ordering, outputting.
Output Installation
Equipped with servo motor and gripping pliers to adjust the required pitch, carry the welded mesh to next work station.
Controlling System
Equipped with man-machine interface windows based for the use of P.L.C, all the parameters and figures set on the screen.
Easy for operators running and maintenance.
Application
Shell structure, wall structure, reinforced concrete road, retaining wall, protection slope, floor, floor boards, successive wall, Steel grating, Protective grill, Stair treads, Grating trench cover, Floor grating, Grill Floor, Metal Floor, Ribbed and pressed metal mesh, Forge-welded grating, Concrete Reinforcement, Construction fence, Concrete froming system, Reinforcement fabric, Concrete Meshes, Prefabricated steel reinforcing material, Fabricated Stainless Steel wirework, Welded mesh fabric, Steel wire mesh, Engineered mesh, Steel fabric mesh, Welded netting, Welded screens, Electrowelded steel wire mesh, Welded wire fencing, Fencing net, Barrier fence, Metal fence, Galvansied Weldmesh, Fine Mesh, Fence netting, Welded nets, Temporary fencing.
| Model | Line Wire Length mm | Cross Wire Length mm | Wire Diameter mm | Line Wire Pitch mm | Cross Wire Pitch mm |
|---|---|---|---|---|---|
| GSA-125 | 2000~6000 | 1000~2400 | Ø3~6 | ≧100(50) | ≧50 |
| GSA-200 | 2000~6000 | 1000~2400 | Ø6~10 | ≧100(50) | ≧50 |
| GSA-300 | 2000~6000 | 1000~2400 | Ø6~12 | ≧100(50) | ≧50 |
